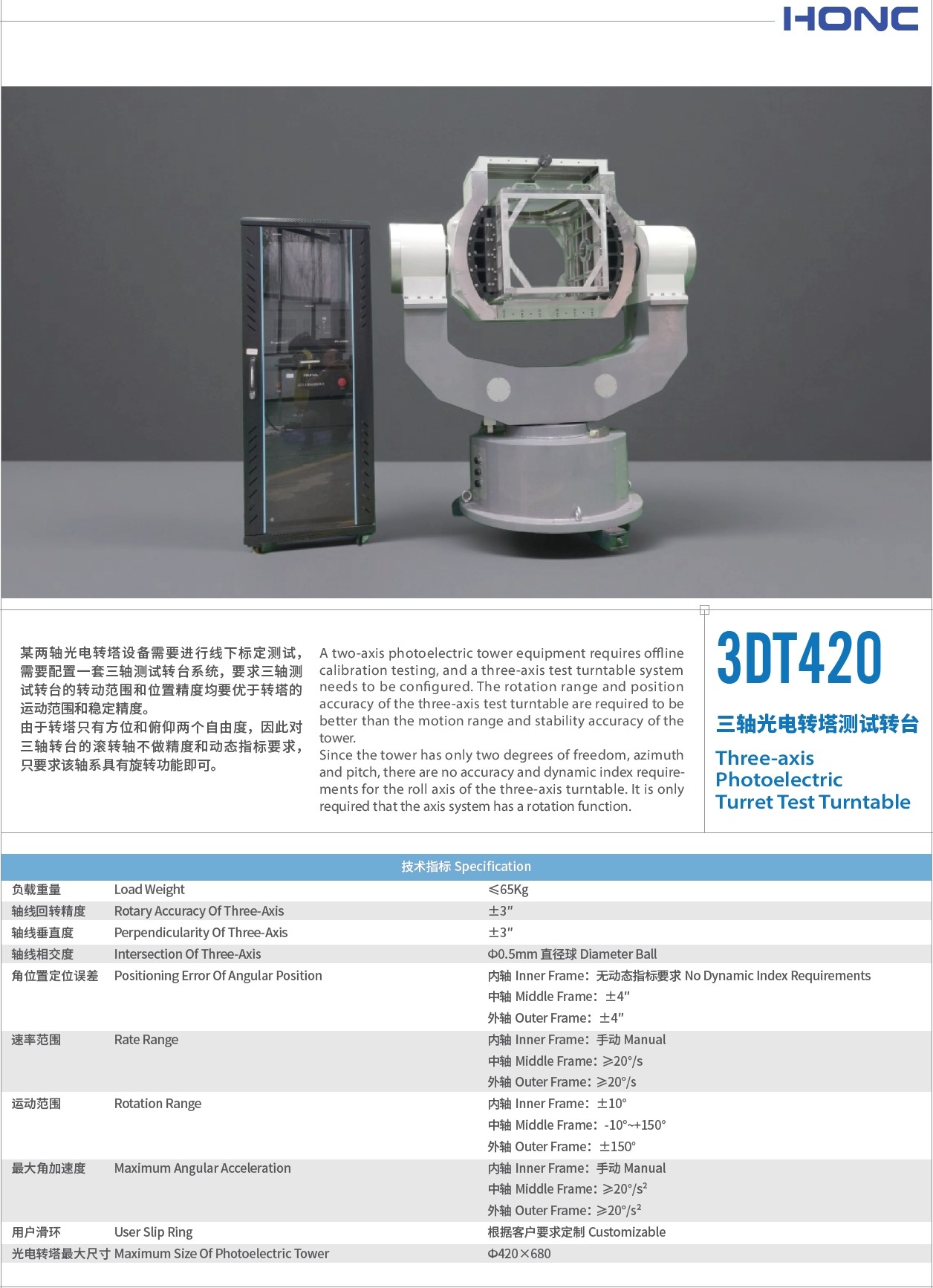

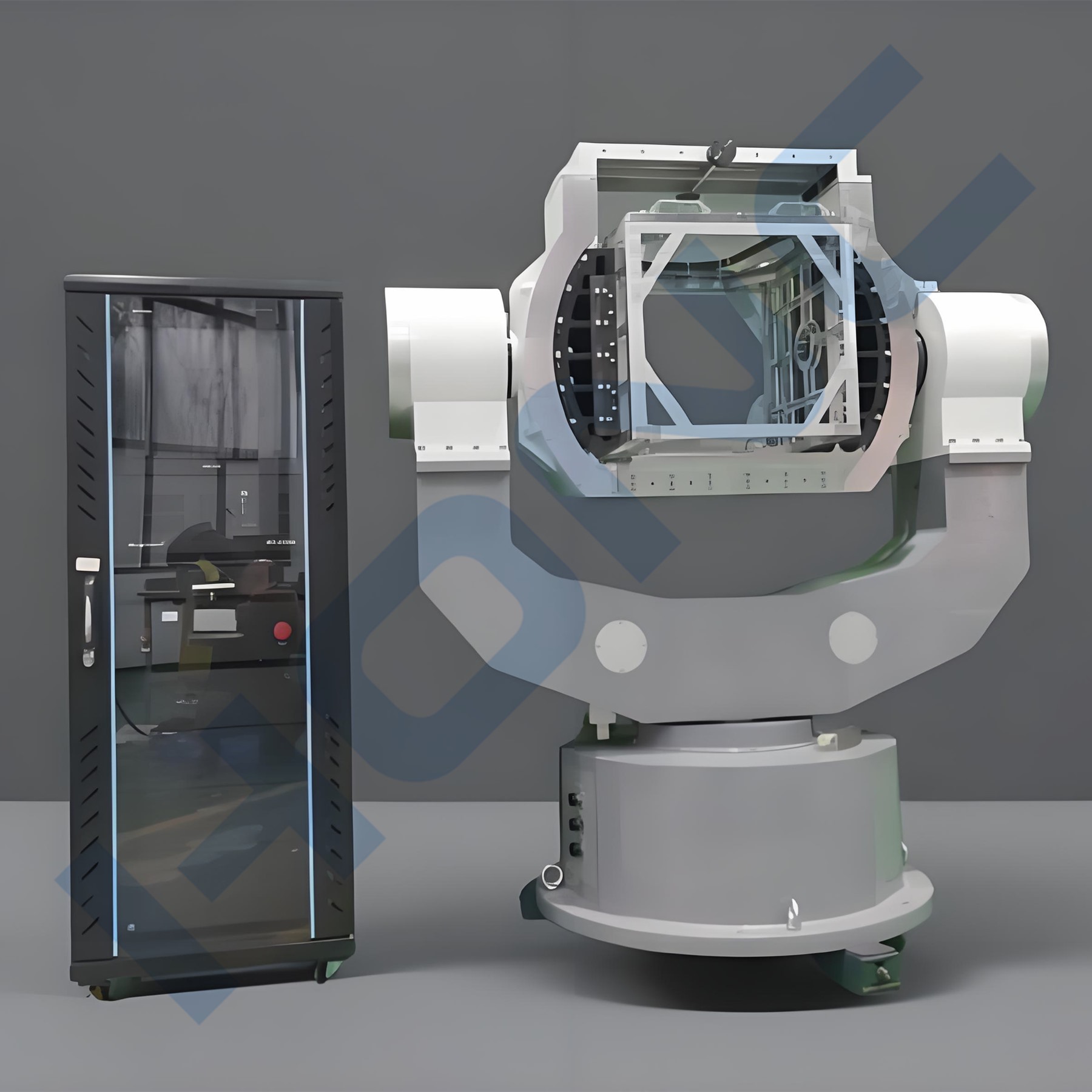

3DT-420型 三軸光電轉塔電動測試轉臺【慣性導航測試轉臺】
產品簡介 Product introduction
慣性導航測試轉臺系統/Inertial Navigation Test Turntable System
慣導測試轉臺根據需要，有電動和手動兩種驅動方式，按結構可分為單軸、雙軸和三軸轉臺等，具有位置、速率、搖擺、跟蹤等多種功能，用于各種慣性器件、慣性組合、隨動跟蹤裝置等的地面測試。
The inertial navigation test turntable,according to the needs, has two driving modes: electric and manual. According to the structure, it can be divided into single-axis, dual-axis and three-axis turntables. It has multiple functions such as position, rate, swing and track-ing, and is used for ground testing of various inertial devices, inertial units,follow-up tracking devices, etc.
三軸電動轉臺是一種能夠?qū)崿F(xiàn)三個獨立軸（通常為俯仰、滾轉和偏航）旋轉的設備，廣泛應用于航空航天、軍事、科研、工業自動化等領域。
The three-axis electric turntable is a device thatcanrotate onthreeindepen-dent axes (usually pitch, roll and yaw). It is widely used in aerospace, military,scientifc research, industrial automation and other fields.
某兩軸光電轉塔設備需要進行線下標定測試，需要配置一套三軸測試轉臺系統，要求三軸測試轉臺的轉動范圍和位置精度均要優于轉塔的運動范圍和穩定精度。
A two-axis photoelectric tower equipment requires offine calibration testing, and a three-axis test turntable system needs to be confgured. The rotation range and position accuracy of the three-axis test turntable are required to be better than the motion range and stability accuracy of the tower.
由于轉塔只有方位和俯仰兩個自由度，因此對三軸轉臺的滾轉軸不做精度和動態指標要求，只要求該軸系具有旋轉功能即可。
Since the tower has only two degrees of freedom, azimuth and pitch, there are no accuracy and dynamic index require-ments for the roll axis of the three-axis turntable. It is only required that the axis system has a rotation function.
技術指標 Technical indicators
1.負載重量/Load Weight：≤65Kg；
2.軸線回轉精度/Rotary Accuracy Of Three-Axis： ±3"；
3.軸線垂直度/Perpendicularity Of Three-Axis：±3"；
4.軸線相交度/Intersection Of Three-Axis：Φ0.5mm 直徑球 Diameter Ball；
5.角位置定位誤差/ Positioning Error Of Angular Position：
內軸/ Inner Frame：無動態指標要求/ No Dynamic Index Requirements；
中軸/ Middle Frame：±4"；
外軸/ Outer Frame：±4"；
6.速率范圍/Rate Range：
內軸/ Inner Frame：手動Manual；
中軸/ Middle Frame：≥20°/s；
外軸/ Outer Frame：≥20°/s；
7.運動范圍/Rotation Range：
內軸/ Inner Frame：±10°；
中軸/ Middle Frame：-10°~+150°；
外軸/ Outer Frame：±150°；
8.最大角加速度/ Maximum Angular Acceleration：
內軸/ Inner Frame：手動 Manual；
中軸/ Middle Frame：≥20°/s2；
外軸/ Outer Frame：≥20°/s2；
9.用戶滑環/User Slip Ring：根據客戶要求定制/Customizable；
10.光電轉塔最大尺寸/ Maximum Size Of Photoelectric Tower：Φ420×680mm；
