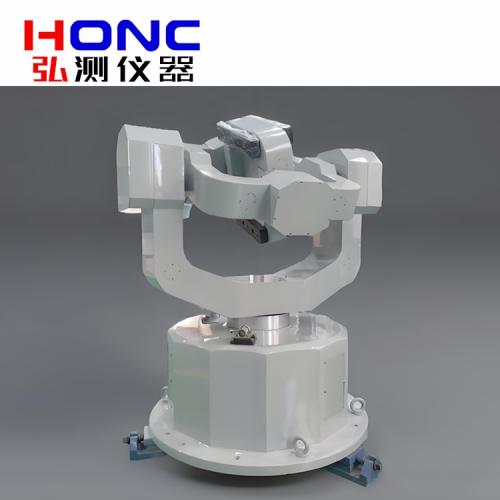

3DT-400B型 三軸電動轉臺【慣性導航測試轉臺】
3DT-400B型 三軸電動轉臺【慣性導航測試轉臺】
產品簡介 Product introduction
慣性導航測試轉臺系統/Inertial Navigation Test Turntable System
慣導測試轉臺根據需要,有電動和手動兩種驅動方式,按結構可分為單軸、雙軸和三軸轉臺等,具有位置、速率、搖擺、跟蹤等多種功能,用于各種慣性器件、慣性組合、隨動跟蹤裝置等的地面測試。
The inertial navigation test turntable,according to the needs, has two driving modes: electric and manual. According to the structure, it can be divided into single-axis, dual-axis and three-axis turntables. It has multiple functions such as position, rate, swing and track-ing, and is used for ground testing of various inertial devices, inertial units,follow-up tracking devices, etc.
三軸電動轉臺是一種能夠?qū)崿F(xiàn)三個獨立軸(通常為俯仰、滾轉和偏航)旋轉的設備,廣泛應用于航空航天、軍事、科研、工業自動化等領域。
The three-axis electric turntable is a device thatcanrotate onthreeindepen-dent axes (usually pitch, roll and yaw). It is widely used in aerospace, military,scientifc research, industrial automation and other fields.

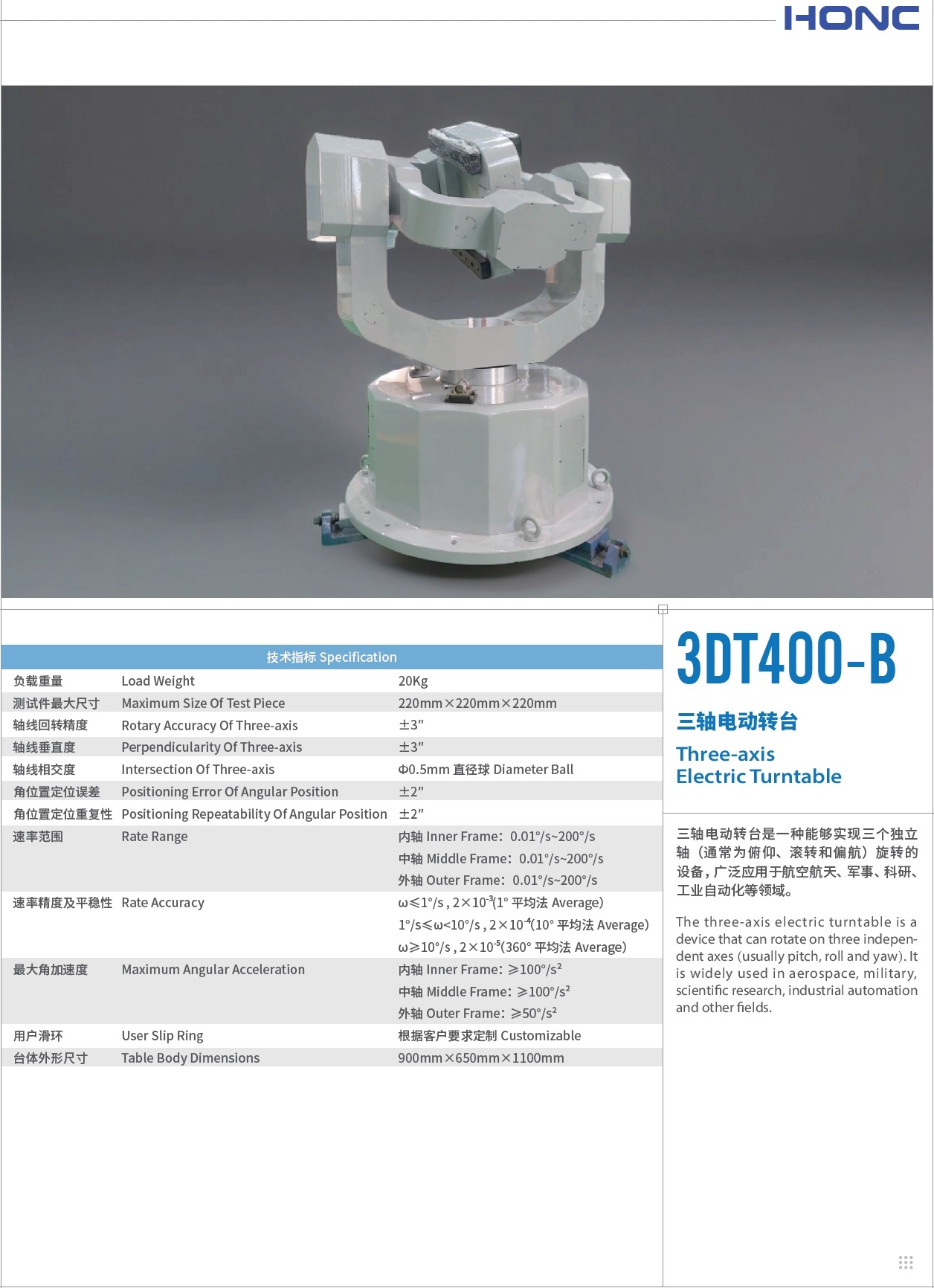

技術指標 Technical indicators
1.負載重量/Load Weight:20Kg;
2.測試件最大尺寸/Maximum Size Of Test Piece:220mm×220mm×220mm;
3.軸線回轉精度/Rotary Accuracy Of Three-axis:±3";
4.軸線垂直度/Perpendicularity Of Three-axis:±3";
5.軸線相交度/Intersection Of Three-axis:Φ0.5mm直徑球 Diameter Ball;
6.角位置定位誤差/Positioning Error Of Angular Position:±2";
7.角位置定位重復性/Positioning Repeatability Of Angular Position:±2";
8.速率范圍/Rate Range:
內軸/ Inner Frame:0.01°/s~200°/s;
中軸/ Middle Frame:0.01°/s~200°/s;
外軸/ Outer Frame:0.01°/s~200°/s;
9.速率精度及平穩性/Rate Accuracyw:
≤1%/s ,2×10-3 (1° 平均法 Average);
1°/s≤w<10/s,2×10-4 (10°平均法 Average);
w≥10%/s ,2×10-5 (360° 平均法 Average);
10.最大角加速度/Maximum Angular Acceleration:
內軸/ Inner Frame:≥100%/s2;
中軸/ Middle Frame:≥100%/s2;
外軸/ Outer Frame:≥50%/s2;
11.用戶滑環/User Slip Ring:根據客戶要求定制/Customizable;
12.臺體外形尺寸/Table Body Dimensions:900mm×650mm×1100mm;
